• Premium design & aesthetics: Made for showcase builds with three tempered-glass panels, brushed-aluminum frame and integrated Aura Sync RGB front lighting

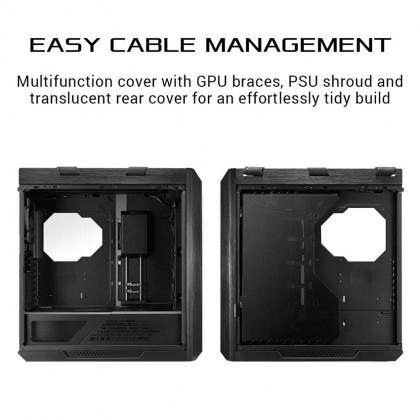

• Clean build made easy: A multifunction cover with graphics cardholders, a PSU shroud, and a translucent rear cable cover offer effortless cable management

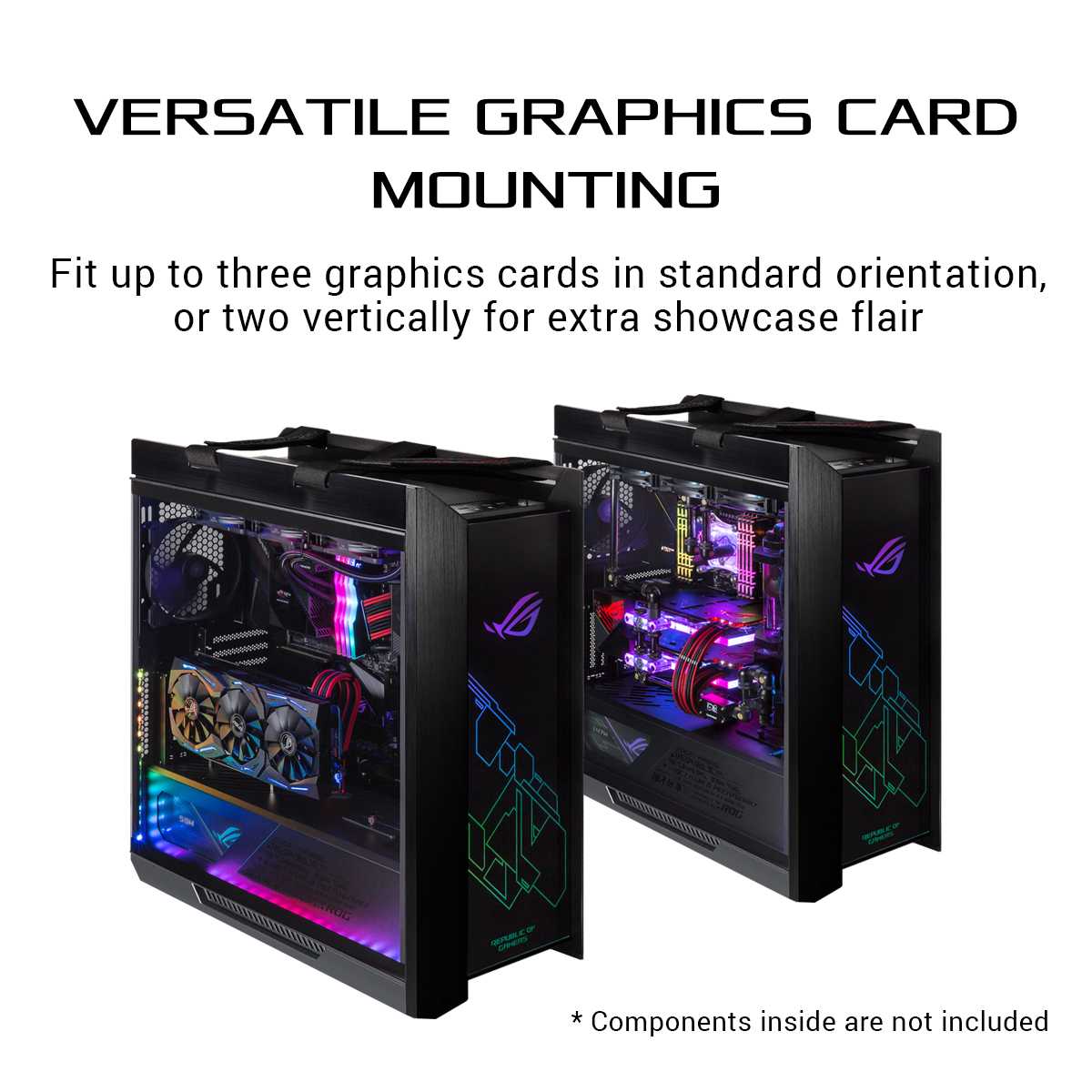

• Versatile GPU mounting: Install three graphics cards in standard orientation, or two vertically for extra showcase flair using a bundled bracket

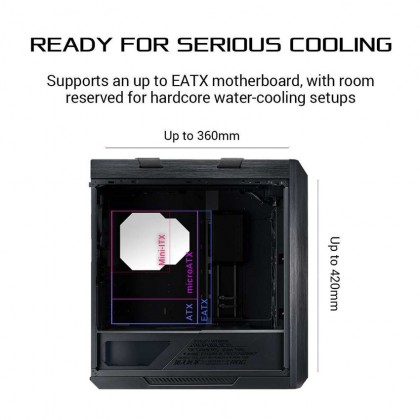

• Ready for serious cooling: Supports an up to EATX motherboard, with room for 420mm front radiators and water-cooling pump and reservoir
• Advanced I/O panel: USB 3.1 Gen 2 Type-C™ port, four USB 3.0 ports, an RGB-lighting control button, and a fan-speed control button
• Comfortable case handles: Easily carry your prized build to LAN parties with ergonomic and stylish fabric handles
ASUS ROG STRIX HELIOS GX601 GAMING CASING WITH HANDLE-WHITE
• Premium design & aesthetics: Made for showcase builds with three tempered-glass panels, brushed-aluminum frame and integrated Aura Sync RGB front lighting
• Clean build made easy: A multifunction cover with graphics cardholders, a PSU shroud, and a translucent rear cable cover offer effortless cable management
• Versatile GPU mounting: Install three graphics cards in standard orientation, or two vertically for extra showcase flair using a bundled bracket
• Ready for serious cooling: Supports an up to EATX motherboard, with room for 420mm front radiators and water-cooling pump and reservoir
• Advanced I/O panel: USB 3.1 Gen 2 Type-C™ port, four USB 3.0 ports, an RGB-lighting control button, and a fan-speed control button
• Comfortable case handles: Easily carry your prized build to LAN parties with ergonomic and stylish fabric handles
SPECIFICATION
Case Size Mid Tower
Motherboard Support
EATX (12"x10.9") ATX Micro-ATX Mini-ITX
Drive Bays
- 4 x 2.5" Bay
- 2 x 2.5"/3.5" Combo Bay
Expansion Slots 8
- 2 (additional vertical)
Front I/O Port
- 1 x Headphone
- 1 x Microphone
- 4 x USB 3.1 Gen1
- 1 x USB 3.1 Gen2 Type C
- LED Control Button
- Fan Control Button
- Reset Button
Tempered Glass
- Front Side
- Left Side
- Right Side
Radiator Support (Front)
120 mm 140 mm 240 mm 280 mm 360 mm 420 mm
Radiator Support (Top)
120 mm 140 mm 240 mm 280 mm 360 mm
Radiator Support (Rear)
120 mm 140 mm
Cooling Support (Front)
3 x 120 mm 3 x 140 mm
Radiator + Fan Thickness: Max. 90 mm
Cooling Support (Top)
3 x 120 mm 2 x 140 mm
Radiator + Fan Thickness: Max. 60 mm
Cooling Support (Rear)
1 x 120 mm 1 x 140 mm
Pre-installed Fans (Front)
3 x 140 mm
Pre-installed Fans (Rear)
1 x 140 mm
Maximum CPU Cooler Height
190 mm
Maximum GPU Length
450 mm (Riser Cable above 200mm in length is required for one GPU install in vertical position)
Maximum PSU Length
220 mm
Removable Dust Filters
Front Top Bottom
Maximum Cable Management Space
33 mm
Dimensions
250 x 565 x 591 mm
Weight
18Kg
ASUS ROG STRIX HELIOS GX601 GAMING CASING WITH HANDLE-WHITE
